Fabric and Foam Laminating Machine for Shoe Making

FOB Reference Price:Get Latest Price
US $12,000-13,500 / Sets | 1 Set/Sets Fabric and Foam Laminating Machine for Shoe Making (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Shoe materials laminating
Automatic Grade:
Semi-Automatic
Production Capacity:
20-40m/min
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KUNTAI
Model Number:
KT-WF-1800B
Voltage:
220v, 380v, Customizable
Power(W):
36kw
Dimension(L*W*H):
6010mm x 2550mm x 2250mm
Weight:
About 3000KG
Features:
Popular
Certification:
CE & ISO
Color:
Customizable
Working Video:
Available on request
Max Material Width:
1600mm, 1800mm, Customizable
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
60 Set/Sets per Month Fabric and Foam Laminating Machine for Shoe Making
Packaging & Delivery
Packaging Details
Fabric and Foam Laminating Machine for Shoe Making
Export Container
Port
Shanghai Port
Lead Time :
About 20 days

Fabric and Foam Laminating Machine for Shoe Making

USAGE AND CHARACTERISTICS:

1. It adopts high temperature resistant pressing mesh to make the laminated material more firm and flat, increasing the bonding effect.

2. Special antirust Teflon paper protects the laminated material when the temperature of the heating drying roller is very high and prevents the glue from sticking to the drying roller.

3. All the heating pipes in the drying roller are made of stainless steel and the temperature of the heating drying roller can be as high as 160 celcius degree, and even 200 celcius degree.

4. There is a glue scraping blade to scrape the glue evenly onto fabric and the unique glue channel design facilitates the cleaning of the glue after lamination.

5. The material feeding roller is moved by air cylinder, realizing more rapid, convenient and precise process.

6. Counting device and rewinding device are installed on the machine.



REFERENCE TECHNICAL DATA:



Machine Roller Width: 2000mm



Maximum Material Width: 1800mm



Power: 36kw



Machine Speed: 20m/min - 40m/min



Estimated Machine Dimension (LxWxH): 6010mm x 2550mm x 2250mm



Package Dimension: One 20GP container



APPLICATION:

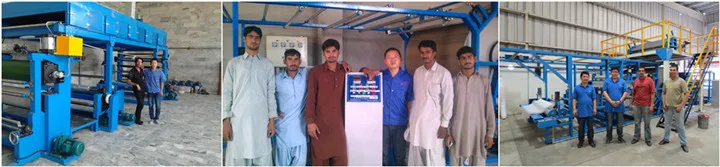

ENGINEERS ONSITE INSTALLING, TESTING AND OPERATION INSTRUCTION:

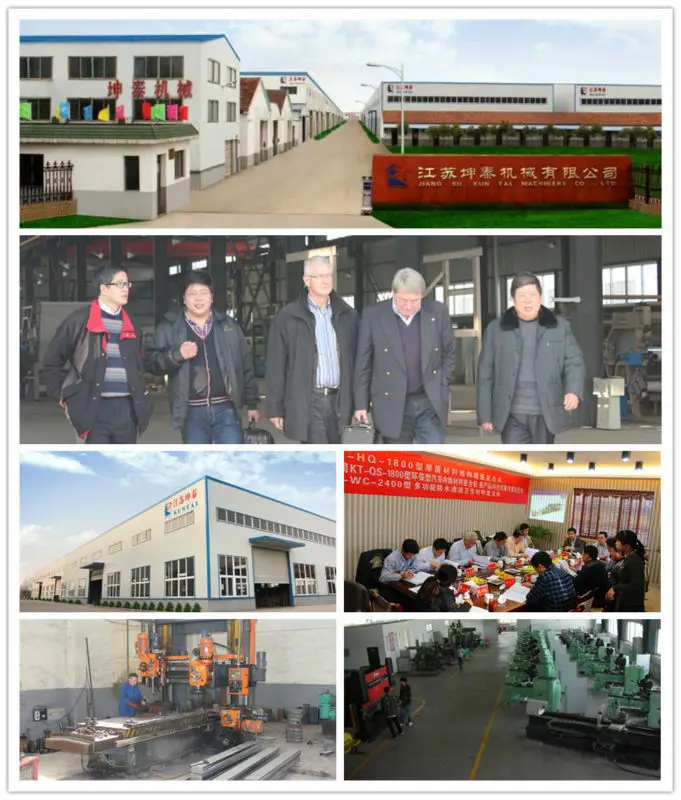

COMPANY CAPABILITY:

CE & ISO CERTIFICATE:
