Quick Details

  • Type: Other, Cutting Machine
  • Condition: New
  • Application: Apparel, Chemical, Commodity, Textiles, Blister Packaging, Sponge, Foam, Plastic, Rubber, Fabric, etc
  • Packaging Type: Case
  • Packaging Material: Plywood Case
  • Automatic Grade: Automatic
  • Driven Type: Hydraulic
  • Voltage: Customizable
  • Power: 7.5kw
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: KUNTAI
  • Model Number: XCLP3 Sponge Cutting Machine
  • Weight: 9000
  • Certification: CE&ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Sponge Cutting Machine
  • Color: Customizable
  • Maximum cutting force: 100T,Customizable
  • Area of work table: 1400*900mm(Customizable)
  • Adjustable stroke: 5-150mm
  • Cylinder: Double
  • Column: Four
  • Auto Feeding Systerm: Double Side(Customizable)

Packaging & Delivery

Packaging Details Sponge Cutting Machine
Inner Package: Protective Film, etc;
Outside Package: plywood Case
Delivery Time About 25 days

XCLP3 Four-column Auto Balance Hydraulic Sponge Cutting Machine

Double Side Automatic Hydraulic Cutting Machine



Product Description

 Usage and characteristics

1. The sponge cutting machine is mainly suitable for cutting various nonmetal materials,such industries as sponge/foam, plastics packing,pearl cotton packaging,rubber and prining etc.
2. PLC contrl systerm,easy to operate.
3. Saving labour.Only need two people to operate it.
4. Small motor,small oil pump.Save electric and oil .Equipped with lubricating system to lessen wear and prolong service life.
5. 24V low power special control system.
6. Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
7. Different height products can be manufactured at same time.
8. Products of special specifications can be customized.


Main Technical Data(Customizable)



ModelXCLP3-400XCLP3-500XCLP3-600XCLP3-800XCLP3-1000
Cutting Force40T50T60T80T100T
Tension Distance(mm)50-20050-20050-20050-20050-200
Cutting Area(mm)1400*6101400*8001400*9001400*9001400*900
Main Motor Power(kw)345.57.57.5
G.W(kg)25004000600073009000



Machine Advantage:

1. Controlled by PLC, electric box, human-computer interface, easy to operation.
2. The main machine adopts double oil cylinder, double-crank connecting rod balance, four-columns, which can guarantee the cutting depth at every cutting position is the same.
3. The pressing board carries out slow cutting when it presses down to contact the die cutter, which can make that there is no size error between the uppermost layer and lowmost layer of cut material.
4. Single-side or double side auto feeding system for choosing, which can improve the producting capacity.
5. Die cutter pueumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.

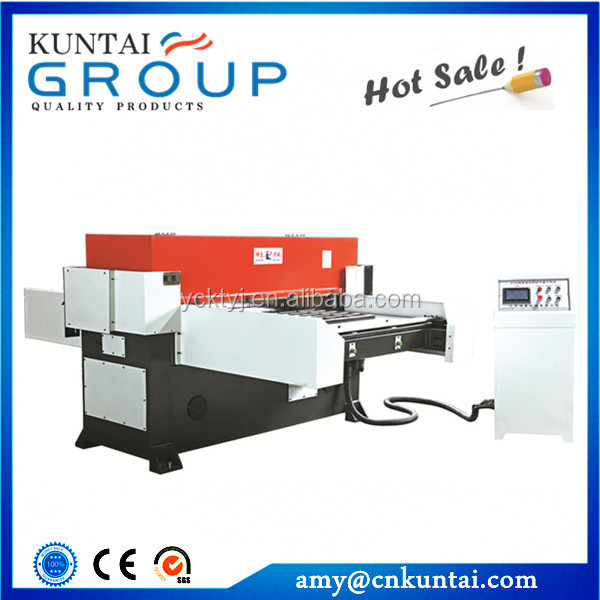

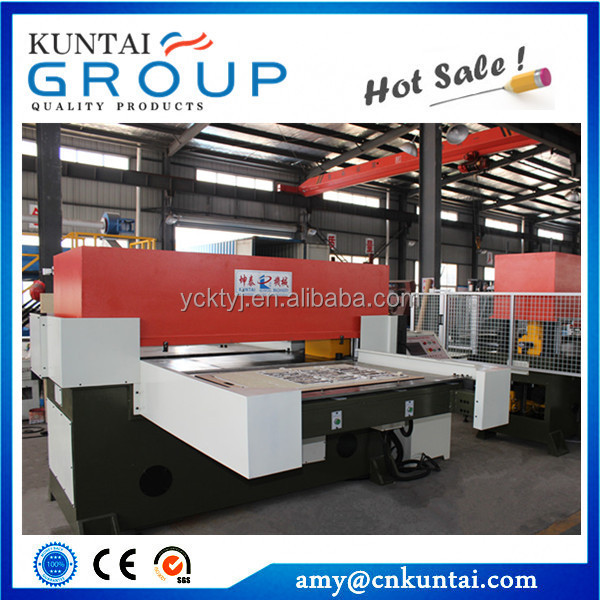

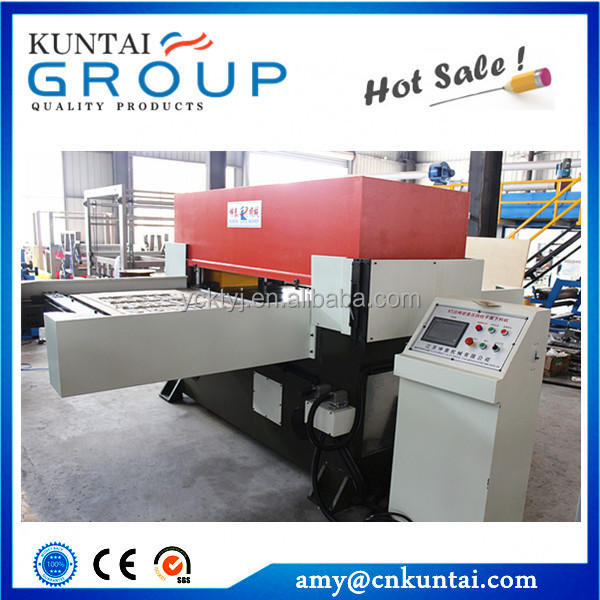

Machine Pictures

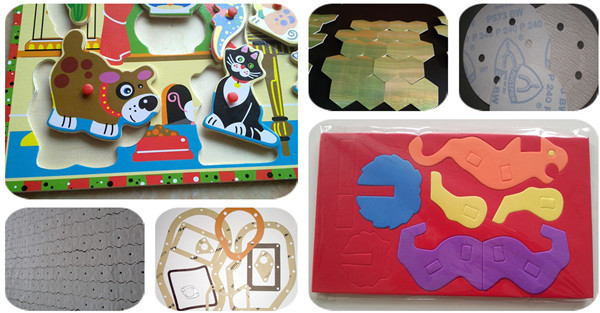

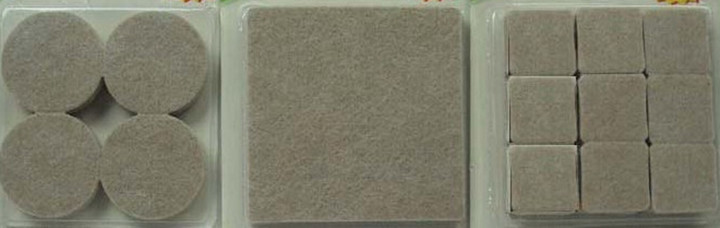

Application For Cutting Machine:

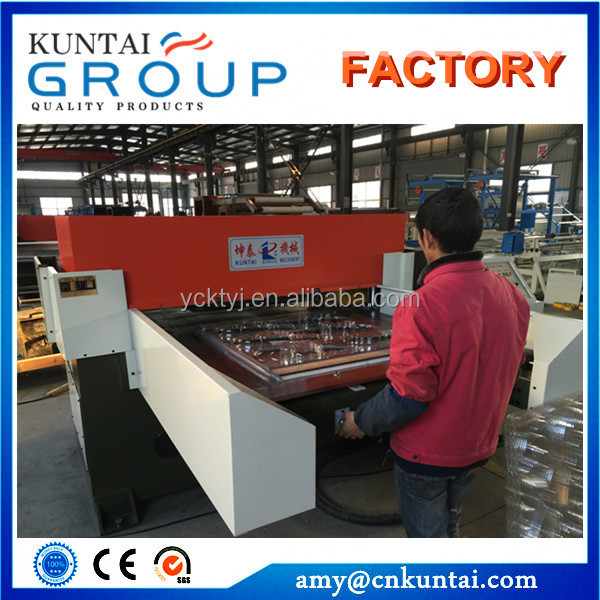

Customer visiting & Exhibition

Packaging & Shipping

 Inner Package: Protective Film, etc

Outside Package: Plywood Case

  • Machines well packed with protective film and loaded in plywood case or export container;
  • English version operation manual and technical data;
  • One-Year-Period wear parts;
  • Tool kit
