Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: KUNTAI
  • Model Number: KTC/S
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Carpet Cutting Machine
  • Type: Automatic Hydraulic Cutting Machine with Conveyor Belt
  • Color: Customizable
  • Working Table Size: 1600/1800/2000*800/900/1000mm
  • Conveyor Belt Width: 1550, 1700, 1900mm, etc
  • Certificates: CE&ISO
  • Mode of Operation: Automatic
  • Drive Mode: Hydraulic
  • Feeding Method: Conveyor Belt
  • OEM Service: Yes

Packaging & Delivery

Packaging Details Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine
Inner Package: Protective Film, etc;
Outside Package: Plywood Case
Delivery Time About 35 Days

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine



Die Cut Automatic Machine



Hydraulic Leather/Fabric/Film/Foam Die Cutting Press Machine



Hydraulic Cutting Press Machine with Conveyor Belt for Motor Interior Decoration Materials



Product Description

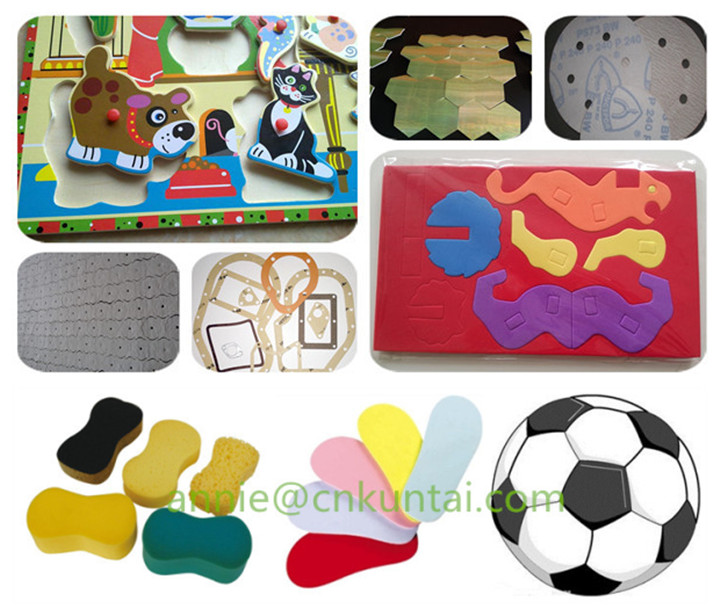

 Application

This kind of Automatic Hydraulic Cutting Machine with Conveyor Belt is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:

  • Automotive interior
  • Sheet material industry supplies

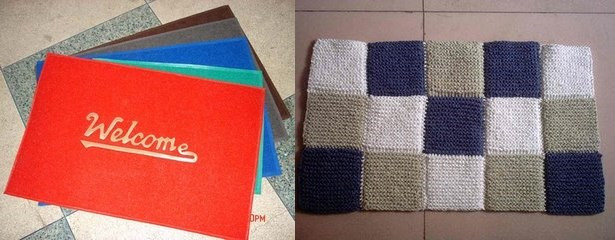

  • Floor mats, Carpets
  • Abrasives, abrasive paper/sand paper...
  • Leather and leathergoods – shoe uppers, wallets, purses, belts
  • Lampshades – fabric or plastic, with or without cut outs
  • Garment – components for hats, ties, collars, shoulder pads
  • Cork gaskets and mats
  • Filters for machinery, breathing apparatus and the medical industry
  • Foam and sponge – gaskets, packaging, consumer products
  • Footwear components – shoes, insoles, insole socks, uppers, straps
  • Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets
  • Rubber – gaskets, seals, washers
  • Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
  • Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.

Features of Automatic Hydraulic Cutting Machine with Conveyor Belt for Carpet

1. Hydraulic AutomaticCutting Machine with conveyor belt for carpets is applicable to continuous and large-batch cutting of nonmetal materials such as fabric, leather, carpet, rubber, film, foam, laminated materials and so on.

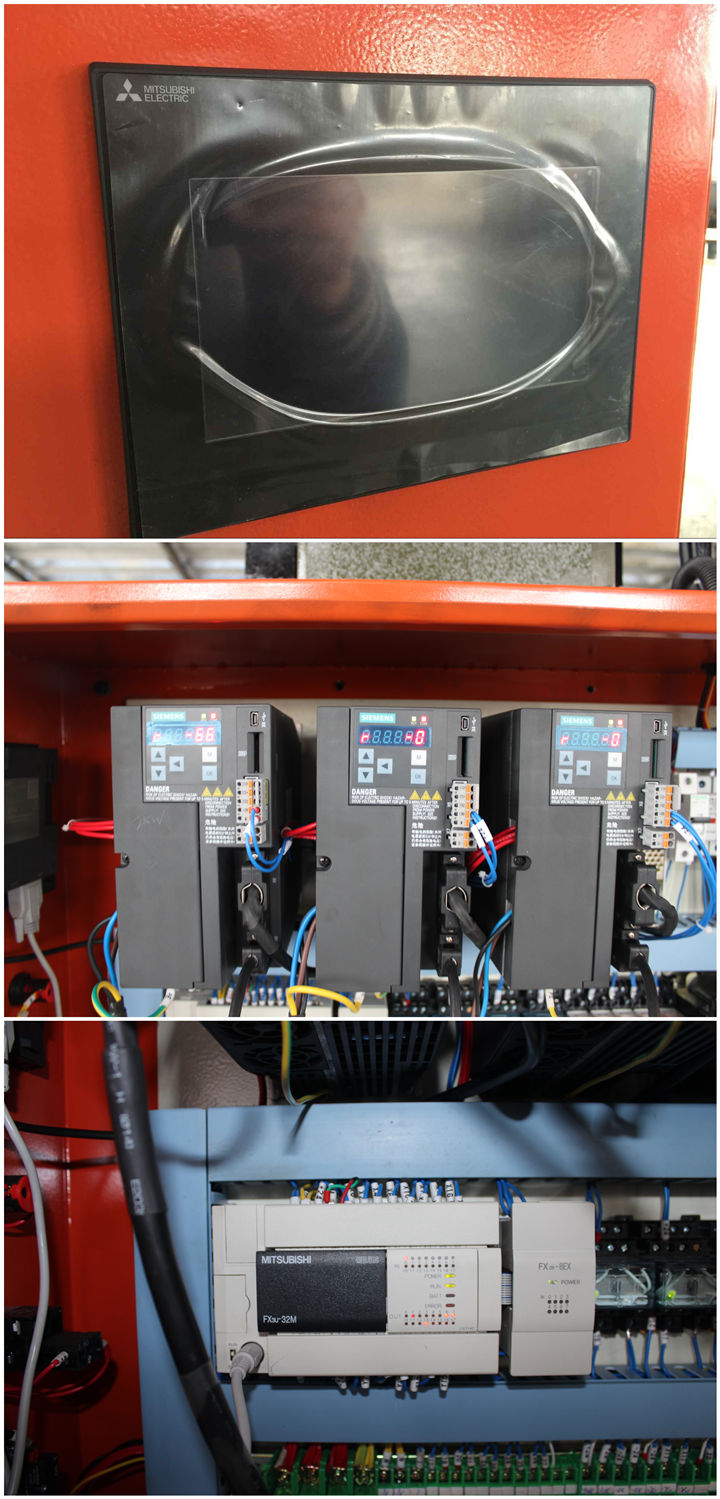

2. PLC computer touch screen control procedures. Driven by servo motor, synchronous belt transmission device feeds the material and the feeding length can be input by the touch screen.
3. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.
4. Double connecting rod balance and hydraulic drive. All moving parts have auto lubricating system, prolonging the machine service life and enhancing cutting precision.

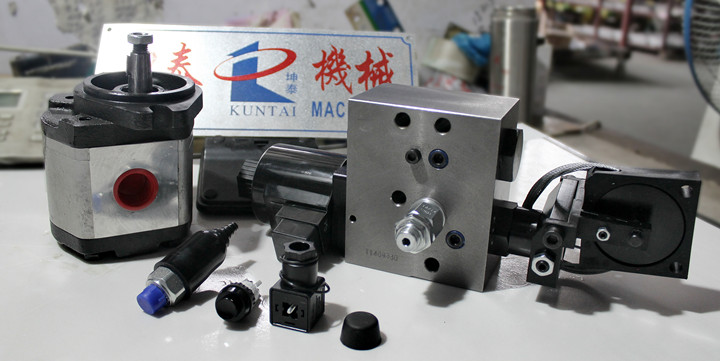

5.Specially designed oil pressure system. The upper board lowers fast depending on its own heavy and when it is near the material, it will slow down, keeping the specs of the upper side and the lower side of the materials the same.
6. Precision machining is adopted for the upper and the lower working tables.
7. There is auto clamp device for cutting moulds on the upper board, making it convenient to change cutting moulds.
8. Protective screening will be installed on the machine, so that the operator can not be close to the cutting area and moving area. When the doors of the screening open, the machine will automatically stop.
9. Automatic material waste remover system enhance high productivity and labor saving.
10. Machines with special specifications can be manufactured as per customer's requirements.

Option of  Automatic Hydraulic Cutting Machine with Conveyor Belt for Carpet

  • Imported Conveyor Belt
  • Machine Color
  • Servo Motor
  • Imported oil pump
  • Roll Unwinding Frame
  • Bed Size
  • Automatic material waste remover system
  • Parts Brands

Technical Information(Customizable)--Automatic Hydraulic Cutting Machine with Conveyor Belt for Carpet

Model
KTC/S
Maximum cutting force60T                          100T
Cutting area1250*1200mm1250/1600*1200mm
Motor power5.5KW11KW
Tension Distance25-135mm25-135mm
Machine weight7500kg
10500kg

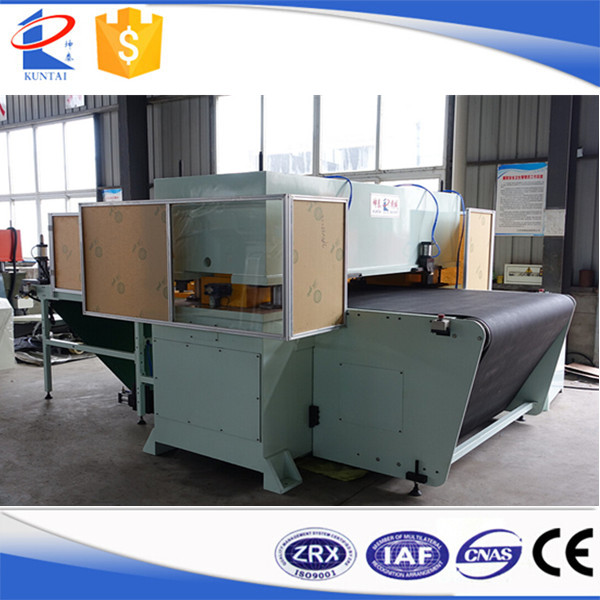

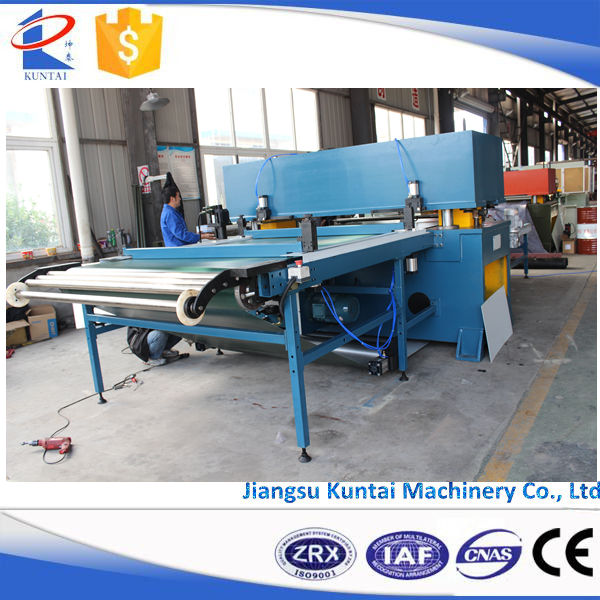

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine Overall View

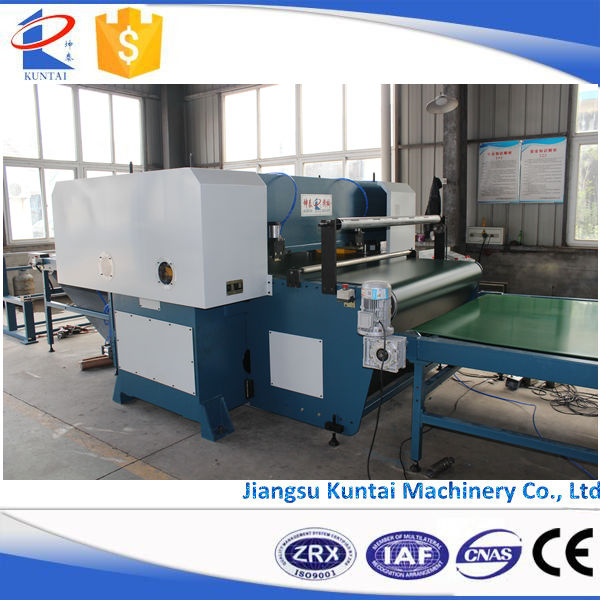

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine Left Side View

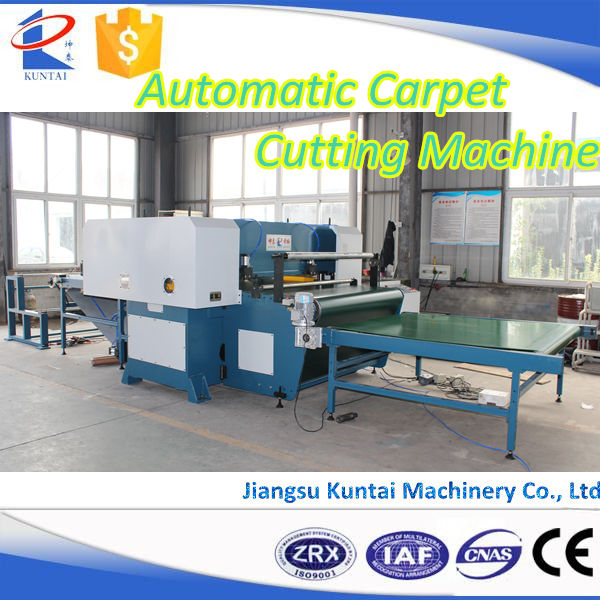

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine Back View

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine

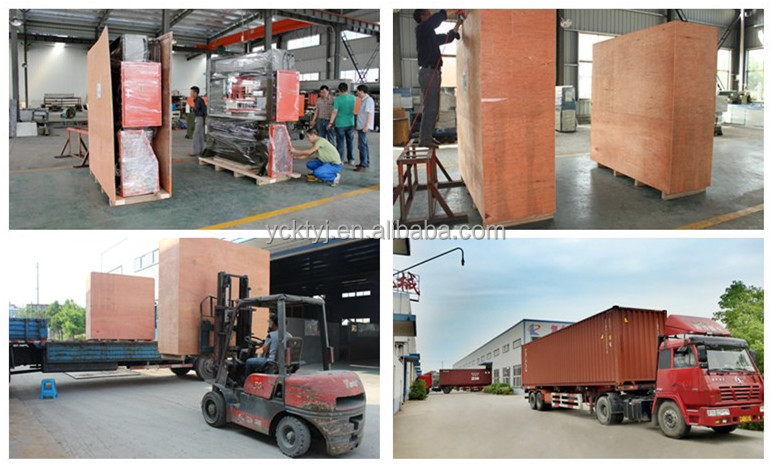

Packaging & Shipping

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine

Inner Package: Protective Film, etc

Outside Package: Plywood Case

  • Cutting machines well packed with protective film and loaded in plywood case or export container;
  • English version operation manual and technical data;
  • One-Year-Period wear parts;
  • Tool kit

Our Services

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine



Company Information

Since 1985, we have been manufacturing various die cutting machines and laminating machines for different industries, such as packaging industry, footwear industry, garment industry, upholstery industry and so on. Strong engineering power and satisfactory aftersales service consolidate our leading place in both domestic market and overseas market.



CE & ISO Certificates:

Automatic Hydraulic Cutting Machine with Conveyor Belt/Carpet Cutting Machine
